New ???? Boredbrain Optx ADAT Optical Converter Module ????

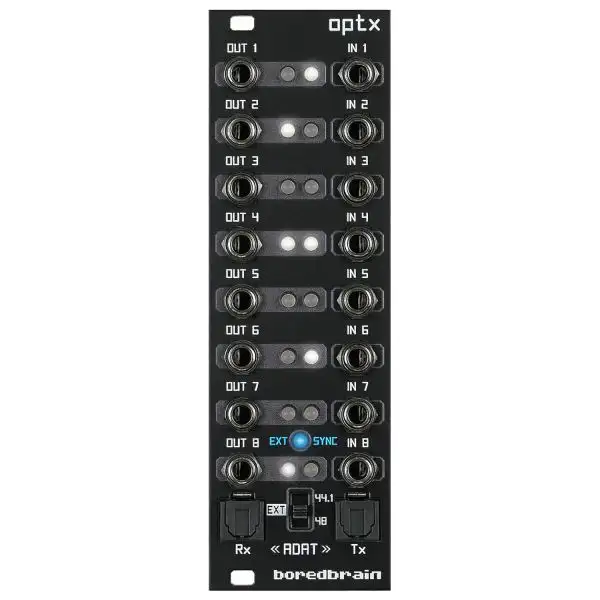

The Boredbrain Optx is a compact and bi-directional ADAT lightpipe converter for eurorack synthesizers. The module provides 8 channels of input and output expansion to many pro audio interfaces, and may be used standalone to interconnect eurorack systems.

ADAT ENCODING & DECODING

Some computer audio interfaces are equipped with one or more pairs of ADAT expansion ports allowing for additional input and output channels. Optx takes full advantage of these often unused ports, providing multi-channel connections directly to and from eurorack systems.

The module accepts any 8-channel ADAT encoded digital signal at the Rx TOSLINK jack (via lightpipe optical cable) and converts it into 8 discrete analog signals available at the OUT 1-8 jacks.

Conversely, Optx accepts 8 discrete analog signals at the IN 1-8 jacks and converts them into an 8-channel ADAT encoded digital signal available at the Tx jack.

DC-COUPLED

The module’s analog outputs are DC-coupled, meaning signals can be AC (audio) or DC (control voltages). So when used in conjunction with software such as Bitwig Studio or Ableton CV Tools, Optx becomes an interface for outgoing control voltages like 1V/oct pitch and gate signals, or LFOs, ADSRs and other modulators. The amount of creative potential here cannot be overstated.

SAMPLE CLOCK SYNCHRONIZATION

• 44.1 Generates and syncs to internal clock of 44.1 kHz
• EXT Syncs to external clock from ADAT signal at Rx
• 48 Generates and syncs to internal clock of 48 kHz

FEATURES:

• Encodes 8 analog inputs into ADAT Lightpipe
• Decodes ADAT Lightpipe into 8 analog outputs
• DC-coupled outputs support both CV and audio signals
• Selectable 44.1/48 kHz internal sample clock or external sync
• Dual LED indication of output signal strength and polarity
