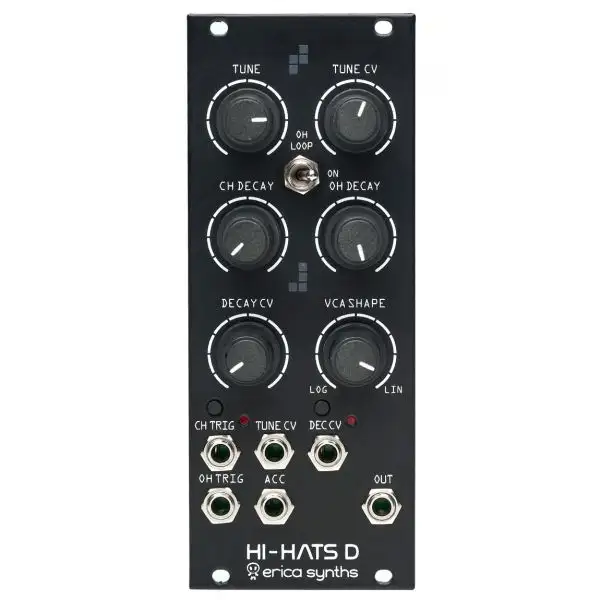

The Erica Synths Hi-Hats D is a take on classical digital hi-hats. Instead of using an integrated circuit DAC chip Hi-Hats D are using 6-bit discrete DAC for that unmistakable crunchy sound. For amplitude shaping samples are passed trough AS3330 based VCA and are controlled with an analog envelope generator for versatile and snappy sound. Extra feature is Open Hi-Hat looping – when it’s on, a certain part of the sample is looped while the envelope decay is on, thus creating distinct, delay-like effect.

Features

• Discrete DAC
• Analog VCA and EG
• Tune and Decay controls
• CV control with an attenuators over Tune and Decay
• VCA response control
• Open HiHat looping
• Manual trigger
• Accent for better expression

Specifications:

• Audio output level: -5 – +5 V
• CV level (full span): -5 – +5 V
• Accent CV level 10 V
• Tigger level 5 V
• Tigger time 1ms
• Power consumption 5 6mA @ + 12 V, 35 mA @ -12 V
• Module width 10HP
• Module depth 45 mm
