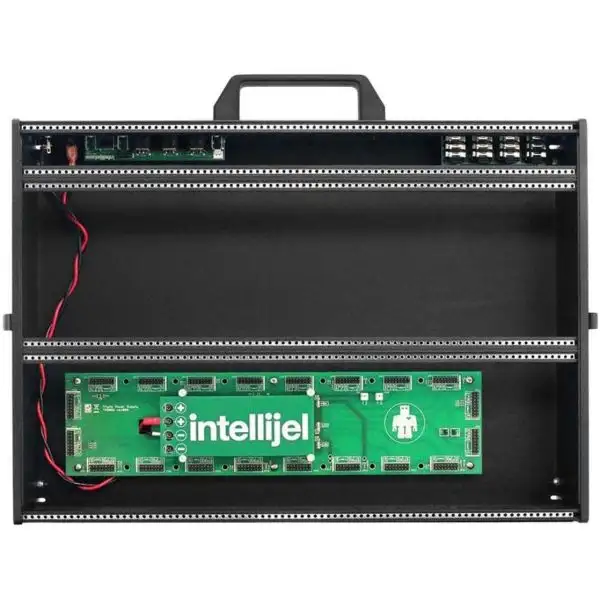

Features:
- Two 84 hp rows (6U) of Eurorack module space
- One 84 hp or 104 hp row for Intellijel 1U modules
- Threaded M3 strips for mounting modules
- Available with either the high spec TPS80W (TPS80W MAX in the 104 hp version) power supply capable of powering up to 20 (MAX: 28) modules with +12 V output at 3000 mA, -12 V output at 3000 mA and +5 V output at 1500 mA or the TPS30 MAX with 1500 mA / 1500 mA / 1000 mA
- Solid plastic carrying handle.
- Anodized aluminum lid with latches, deep enough to close the case with cables patched in
- Retractable feet that can support the case at two different angles – Or lay the case flat on a table
- Spring-loaded latching accessory slots on top and bottom of the case. The slots can be used to attach two cases together using a pair of 7U Joiner Plates.
- Four 1/4″ audio jacks that can be connected to the Audio I/O 1U – Two ins and two outs
- MIDI In, Out, and Thru jacks – The In jack can be connected to the µMIDI 1U and will pass to the Thru – The Out is for future expansion.
- USB port that connects to the µMIDI 1U and other future modules
- Rocker switch and barrel plug for power entry
