Wholesale ???? Intellijel Triplatt ⌛

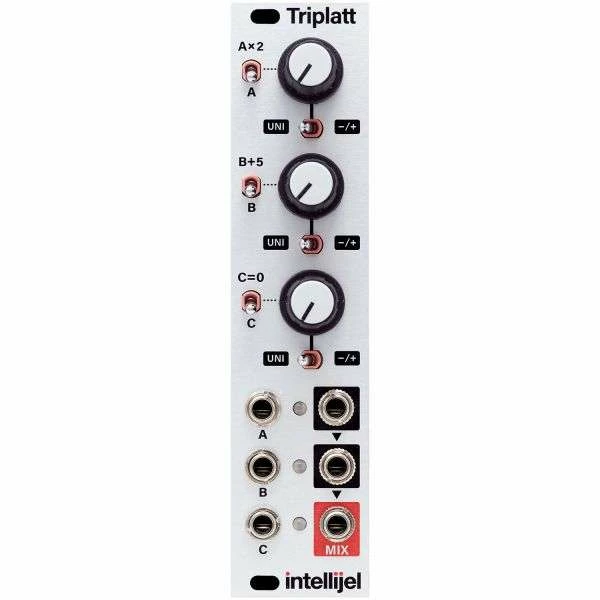

The Intellijel Triplatt is a three-channel active/buffered attenuverter and summing mixer. Each channel has a knob, which can function as a unipolar attenuator or a bipolar attenuverter, depending on the setting of its corresponding two-position polarity switch. It’s a versatile and super handy utility module that will find its way into almost any patch you make!

Each input is normalled to a built-in +5 V DC voltage source. With nothing plugged into the jacks, each knob controls a voltage range of 0 to +5 V or -5 to +5 V depending on the position of the channel polarity switch.

Each output is normalled to mix into the output of the channel below, making it possible to do sub mixes in groups of two or three.

Features:

• Triple Attenuator/Inverter/Attenuverter/Multiplier/Adder/Mixer/DC Voltage Source
• Two Modes for each channel (Positive or Bipolar)
• Additional “special function” for each channel
• Precision 5v source normalling to all three inputs
• Dual color led for monitoring each individual output
• Skiff /Palette friendly
